• 3T Panel Powered Roller Surface Lifting Table With Forklift Space
  • video

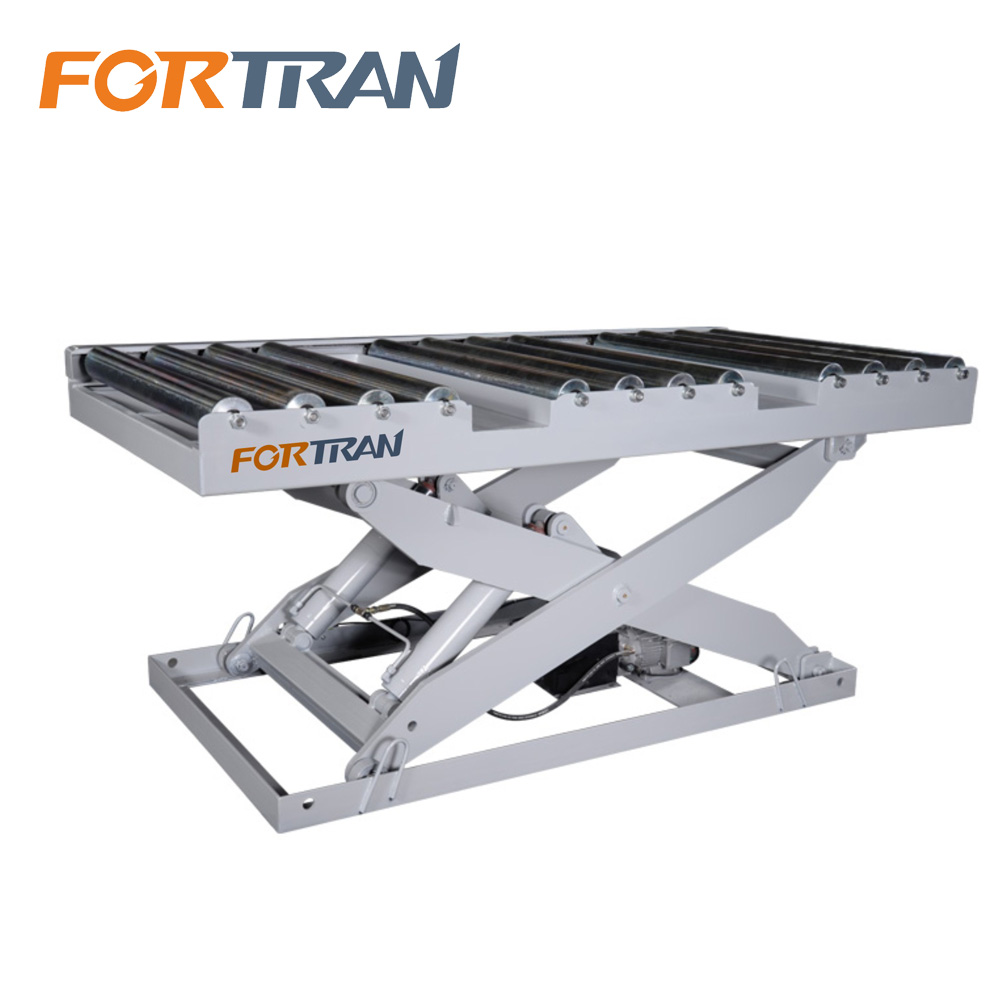

3T Panel Powered Roller Surface Lifting Table With Forklift Space

  • FORTRAN
  • Guangdong,China
  • 5-10 days
  • >1000 sets per month
The 3T plate type drum type surface lifting platform with forklift space has been designed with technology integration to solve the pain points of "uneven lifting, transmission lag, and difficulty in forklift coordination" in traditional material processing. It has become an efficient "bridge equipment" connecting production and warehousing links, especially suitable for medium and heavy-duty material processing scenarios with high efficiency and safety requirements

3T Panel Powered Roller Surface Lifting Table With Forklift Space

3T Panel powered roller surface lifting table with forklift space


Actual load≤ 6000kg
Height travel400~1650mm
Table size2500*1250mm

3T Panel Powered Roller Surface Lifting Table

Core Technology: Precise Design with Multi System Collaboration

The core competitiveness of the equipment comes from the collaborative optimization of the four major technological systems, ensuring the comprehensive performance of "stable load-bearing, accurate lifting and lowering, flexible transmission, and smooth forklift operation".

High strength load-bearing and structural optimization technology

The main frame is made of Q355B high-strength alloy steel, and the stress distribution is optimized through finite element analysis to ensure that the deformation under 3T rated load is ≤ 2mm, and the instantaneous impact load can reach 4.5T (to cope with the impact load of forklift rapid loading).

The tabletop adopts a composite structure of "plate+reinforced mesh", which not only ensures the flatness of the roller installation surface (error ≤ 0.5mm/m), but also disperses the pressure through the bottom longitudinal and transverse reinforcement bars to avoid deformation of the tabletop caused by local overload.

Precision lifting drive system

Adopting dual cylinder hydraulic synchronous drive technology, equipped with precision flow control valves, the lifting speed can be infinitely adjusted within the range of 5-15mm/s, and the lifting height range covers 300mm-1500mm (meeting the height connection requirements of most production lines and storage shelves), with a synchronization accuracy of ≤ 2mm, to avoid material tilting and slipping.

Integrated servo motor and encoder closed-loop control, with a lifting positioning error of ≤ 1mm, can accurately connect to production lines, freight cars, or storage platforms of different heights, achieving "seamless connection".

Integrated technology of plate drum transmission

The tabletop is embedded with a Φ 50mm high carbon steel drum (with a spacing of 100mm), and the surface of the drum has been hardened (hardness HRC55-60). The wear resistance coefficient is 30% higher than that of ordinary drums, and it is suitable for non powered/electric transmission of various materials such as metal parts, wooden boxes, and pallets (optional electric drum, transmission speed of 0.5-2m/s).

The height difference between the drum and the table is controlled within ± 1mm to ensure that there is no "jamming" when placing materials, and that the forklift fork teeth do not interfere with the drum when passing through (the fork tooth spacing is designed to be misaligned with the drum spacing).

Forklift compatible space design technology

Two forklift passages with a width of 300mm and a depth of 800mm are reserved below the countertop (with a spacing of 600mm, suitable for standard forklift fork spacing). The bottom of the passage is reinforced with thickened steel plates (16mm) and equipped with a guide slope (15 ° gradient). Forklifts can directly transport and transfer the entire equipment or materials on the equipment without the need for additional lifting tools.

Wear resistant guide blocks are installed at the entrance of the channel to reduce the impact and wear of forklift fork teeth on the equipment and extend its service life.

safety guarantee system

Built in overload protection (automatic power-off/pressure relief when the load exceeds 3.5T), limit protection (mechanical and electronic dual locking when lifting to the limit position), emergency stop button (response time ≤ 0.5s), in compliance with CE safety certification standards.
